Digital Instrumentation

  • 16 function digital gauge with alarms

  • User defined gauge labels and 10 graphics display options

  • Bluetooth wireless data transmission option

  • Remote data logging and viewing on PC/PDA

  • Sealed water resistant design

  • Customizable sensor calibration tables match any sender

  • NMEA 0183 input/output accepts GPS/SONAR data

  • Large 4" color graphic sunlight readable LCD display

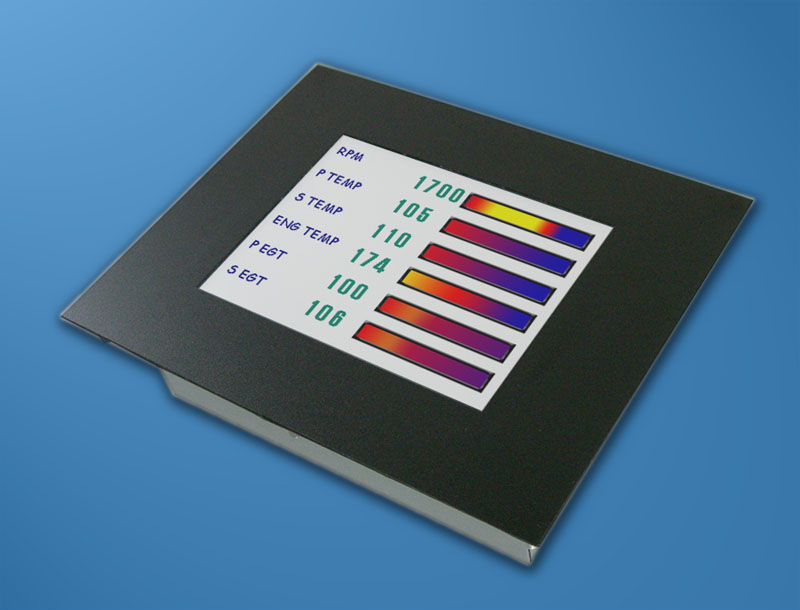

SeaGauge-G12N is a multi-function color digital marine gauge that replaces mechanical instruments and gauges  in marine and boat electronics applications. Now get digital instrumentation display of a variety of boat performance parameters such as TACHOMETER, RPM, OIL PRESSURE, ENGINE TEMPERATURE, FUEL LEVEL, VOLTMETER, MAIN and AUXILIARY BATTERY,  and much more all in a compact sealed design. SeaGauge-G12N will replace existing instruments and gauges on most inboard and outboard boats without having to rewire or replace sensors. Uses Bluetooth technology and NMEA 0183 formats to transmit gauge readings to laptops and PDA's.

SeaGauge-G12N is based on a advanced color  graphic LCD display (4" diagonal) which can create a variety of instrumentation display formats.  Ten graphic display modes are available to create a truly virtual dashboard on each of eight possible screens. The LCD display is easily readable in bright sunlight and the white LED backlight makes low light viewing standout.

SeaGauge-G12N  is ideal for dual engine applications where display of tachometer, engine temperature, oil pressure, fuel tanks, and voltage for each engine is accomplished on one screen. Additional screens can show transmission fluid temperature and pressures, turbo boost pressures, fuel pump pressures, and much more - all in a single compact unit.

SeaGauge-G12N  uses a sealed screen and microprocessor control to allow you to create up to 16 custom gauge positions selectable with touch commands. Twelve sensor readings can be visible at all times while the  remaining values are recalled with a single scroll button. You can custom design it to match your boat instrumentation system.

SeaGauge-G12N  is a combination of a color display head and remote sensor unit that can be mounted up to 150 feet away. Sensor readings are collected and transmitted to multiple displays using USB or RS232 links allowing for simple installation. There is even an option for Ethernet interface.

SeaGauge-G12N can transmit gauge readings via built-in serial port or wireless Bluetooth connections to your laptop or PDA for real-time display and data logging. NMEA 0183 integrated instrumentation sentences ($IIXDR) ensure compatibility with on-board equipment. Gauge readings can be transmitted and displayed on other NMEA 0183 devices. SeaGauge can also decode and display NMEA 0183 sentences such as depth and GPS information. Bluetooth wireless connectivity allows a laptop or PDA to receive data up to 100 feet away. Optional software for personal computer or PDA (PocketPC 2003) is available for display and real-time data capture. The Bluetooth wireless capabilities allows one unit to be installed in the engine room or helm while a second unit can mounted at an alternate location without running additional wires.

SeaGauge-G12N can be programmed to match you existing sensors/senders. Simply attach to a computer or PDA via serial cable or wireless ports - and download a text file to recalibrate. All display values are user programmable by typing values in any text editor and downloading to the device. Unit can be upgraded in the field without removing from the dash. No matter what your current sender/sensors are currently installed - SeaGauge can adapt.

SeaGauge-G12N utilizes a solid aluminum case and a advanced faceplate design that significantly reduces glare and fogging of the display. A customized multi-level gasket system guarantees that moisture will not leak past the two sealed buttons making the unit completely water tight.  SeaGauge-G12N can be mounted on any wet deck and take the punishment of marine use. Extensive testing in marine environments has proven durability and function.

SeaGauge-G12N is compact in size, big on function. Use SeaGauge-G12N on your dash to replace old analog instruments which take up valuable space. One SeaGauge  will replace 16 mechanical instruments in  the space of one. Now you will have room for that new sonar or GPS unit. Combine SeaGauge with our popular SeaSwitch and transform your entire dash into a solid-state sealed digital instrument panel occupying a fraction of the space of your old dash.

SeaGauge-G12N is housed in a solid two-piece  machined aluminum water-tight case measuring only 5" x 4.5" X 1.55" deep to fit easily into any dash configuration. The three layer coating protects against corrosion and provides an attractive finish. Its small size allows you replace larger mechanical gauges while maintaining lighted position display of all positions. Unlike mechanical instruments, SeaGauge-G12N is sealed to the environment and can even be mounted on the open deck.

SeaGauge-G12N is ideal for any marine application where space is at a minimum and exposed to the elements. Use SeaGauge-G12N on your open cockpit runabout or sailboat. SeaGauge-G12N is perfect for that river sled or jet boat where keeping water and the elements out of the boat is always a problem. Transform your dash into the digital age.

   Download Product Brief    Where to Buy
