vDash  Specifications

Virtual Dashboard Utility for PC

Digital Dial
  A 16 segment dial with needle rotating around perimeter as signal increases. A 4 character digital readout of sensor values is in the center and a user defined sensor label is below.  Dial face changes color to indicate warning conditions
Large Dial
  A 24 segment dial with a fill bar rotating around perimeter as signal increases. A 4 character digital readout of sensor values is in the center and a user defined sensor label is below.  Dial face changes color to indicate warning conditions
Digital Data
  A 8 character user defined sensor label and a 4 character sensor readout from calibration table
Vertical Bar
A 20 segment vertical Bar Graph with large numerical readout and sensor label. Dial face changes color to indicate warning conditions

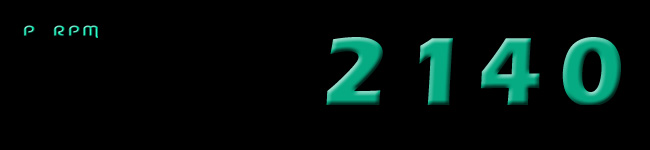

Huge Data
  A 8 character user defined sensor label and a Huge 6 character sensor readout from calibration table.
Bar Graph
  A 8 character user defined sensor label and a 4 character sensor readout from calibration table followed by a 20 segment bar graph as signal increases
Histogram
  A 8 character user defined sensor label and a 4 character sensor readout from calibration table Histogram is a 200 segment bar graph. Colors indicate sensor level changes over time.
